MK8A: |
PRODUCT DESCRIPTION:
Instrument quality microphone for use with Gold Line models DSP30, DSP30RM, DSPCIW, LM27P5 Real Time Analyzers, MX4 Multiplexer and SPL120R SPL Meter.
In the field calibration adjustment provided. |
CARTRIDGE TYPE:
Omni-directional electret condenser. |
SOUND INPUT:
123dB SPL maximum. |
OUTPUT:
XLR 3 Pin male. Pin (1) ground, Pin (2) Hot, Pin (3) Neutral.
Works with: 600 ohm balanced input. |
FREQUENCY RESPONSE:
20Hz - 20kHz |
POWER REQUIREMENTS:
12 -48Vdc phantom |
SIZE (L x Dia); WEIGHT:
- 6½" x 5/8" body, ½" capsule housing; 2oz.
|
HOUSING MATERIAL:
Silver matte anodized aluminum. |

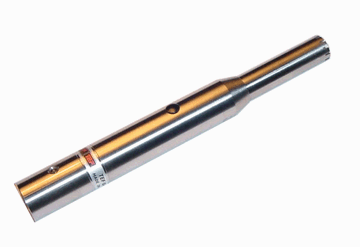

PRODUCT DESCRIPTION:
- Instrument/Calibration quality microphone.
- Ideal for certain studio and live recording applications.
- Use with Gold Line DSP series and TEF Acoustic Analyzers.
- Supplied as standard in ProKIT Measurement Systems.
- Fits standard ½" calibrators.
|
CARTRIDGE TYPE:
Omni-directional condenser. |
SOUND INPUT:
123dB SPL maximum. |
OUTPUT:
XLR 3 Pin male. Pin (1) ground, Pin (2) Hot, Pin (3) Neutral. |
FREQUENCY RESPONSE:
- 20Hz - 15kHz ± ½ dB
- 15kHz - 20kHz ±1dB
|
OPEN CIRCUIT SENSITIVITY:
9.1mV/Pa |
IMPEDANCE:
20 ohm. |
POWER REQUIREMENTS:
12-48Vdc phantom. |
SIZE (L x Dia); WEIGHT:
- 6¼" x 3/4" body, ½" capsule housing; 5oz.
|
HOUSING MATERIAL:
Stainless Steel. |
SUPPLIED WITH:
Foam Padded Carry Case*, Mic Clip*, Wind Screen*, Frequency Plot and Serial Number. * When purchased as TEF04P (stand-alone microphone). |
