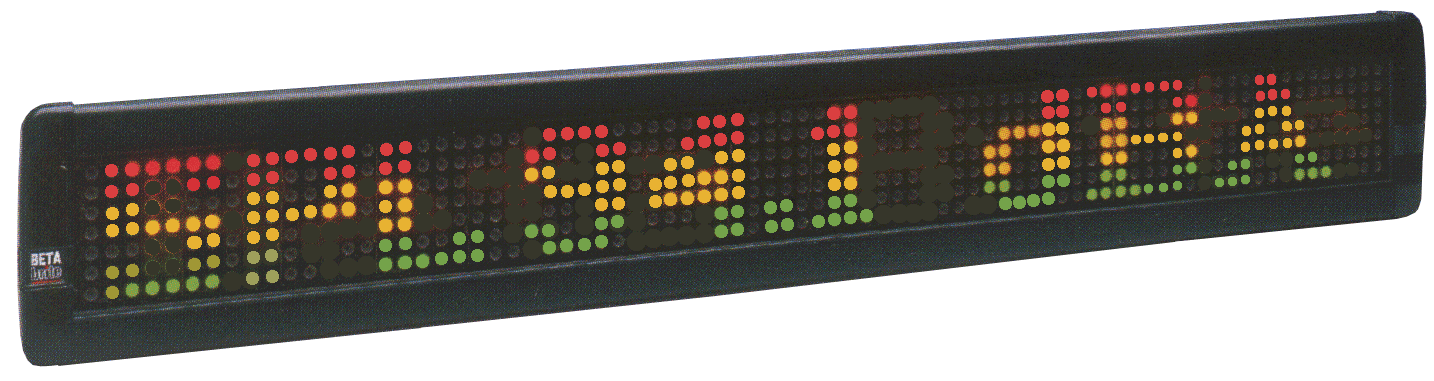

SPLSIGN
SPLSIGN
SPLUNIT

  • Rack Mounted Pressure Level Meter with electronic message display.

  • Combine SPL readings with custom display messages.

  • Visible at 150 feet.
  • REDLINE

    SPECIFICATIONS - SPL

    MEASUREMENT RANGE:
  • 65 - 123db SPL

  • INPUT:
  • MICROPHONE: Detachable 600 ohm omnidirectional electret condenser. Model MK8.

  • WEIGHTING:
  • IEC A, C and FLAT SPL.

  • TIME WEIGHTING:
  • RMS Fast.

  • ATTACK TIME:
  • 0.15s

  • POWER REQUIREMENTS:
  • Chassis - 12Vdc @ 240mA via 3.5mm jack (Wall Transformer Supplied)

  • SIZE (W x H x D); WEIGHT:
  • Chassis: 19" x 1.75" x 4"; 24 oz.

  • MATERIAL:
  • Chassis: Painted Aluminum

  • SPECIFICATIONS - Display
    DISPLAY:
  • 80 Column x 7 Rows.
  • 24" x 2.1" Display Area.

  • MESSAGES:
  • 65 Message Capacity.
  • 26 Operating Modes (Roll, Rotate, Twinkle, Scroll, Flash etc.).
  • Built-in Animations.
  • Clock With 12 or 24 Hour Format.
  • Infra-red Remote Control Programmer Included.

  • COMPUTER INTERFACE:
  • Serial RS232.

  • POWER REQUIREMENTS:
  • 7.5Vdc @ 3.25A (Wall Wart Supplied)

  • OPERATING TEMPERATURE:
  • 32o to 120oF, (0o to 50oC).

  • SIZE (W x H x D); WEIGHT:
  • 25.8"L x 2.0"D x 3.8"H; 2.55 lbs.

  • MATERIAL:
  • Extruded Aluminum
  • Supplied with hardware for wall or ceiling mount.
