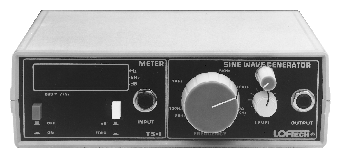

TS1 (Top) - Contains a low distortion oscillator, frequency counter & dB meter.

Click here to read an article on the TS1 and TS1RMX in the Tool Guide section of The Radio Guide Magazine.

TS1RMX - The TS1 in a rack mount configuration.

TS2 - Contains a low distortion oscillator, frequency counter, dB meter & impedance meter.

General specifications for TS1, TS1RMX, TS2:
Display: 4 digit via 7 segment LEDs.
Connectors: TS1 & TS2 - ¼" phone jack (TSR); TS1RMX - XLR 3 pin .
Power Requirements: 115Vac @ 60Hz (50Hz internally strappable), 220Vac available
Optional Battery Pack: Allows unit to be taken into the field with attached rechargable Gel-Cell battery. Not available on TS1RMX.
Approvals: -

Emissions: - EN 55022 B - FCC Class B

Immunity: - EN 55024 B
TS1 & TS2:
Size (W x H x D); Weight: 7-7/8" x 2-5/8" x 7"; 2 lbs.
Case Material: High impact ABS; Front & Rear Panels: Painted aluminum.
TS1RMX:
Size (W x H x D); Weight: 19" x 1.75" x 7"; 3 lbs.
Case Material: Painted aluminum.

The Low Distortion Oscillator:
A current controlled, state-variable true sine wave oscillator incorporating a fast AGC circuit. Distortion components are typically 0.1% 2nd and 0.05% 3rd which are low order and not audible making the TS1 & TS2 useful in making listening tests where a function generator would generate undesirable, audible side effects. Full frequency sweeps can be made from 20Hz - 20kHz in a single range. These units have no amplitude changes over the entire frequency range.
Frequency range: 10Hz - 30kHz
..... TS1RMX only: 10Hz - 27kHz
Accuracy: ± 0.1dB from 20Hz - 20kHz.
Output impedance: 50 ohm unbalanced. Optional balanced available.
....... TS1RMX only: 63.2 ohms (balanced).
Adjustable output level: -70dBv to +18dBv ref: (0.775V)
............... TS1RMX only: -60dBv to +24dBv ref: (0.775V)
Maximum output level: +18dBv @ 2k ohm or greater, +16.5dBm @ 600 ohms.
............... TS1RMX only: +24dBv @ 2k ohm or greater, +22dBm @ 600 ohms.
Distortion: < 0.3% THD
Return to top of page.

The Frequency Counter:
The frequency counter is internally connected to the internal oscillator and displays the oscillator frequency until a signal is plugged into the input connector. It then displays the frequency of the input signal. This unique combination allows absolute precision in setting frequencies.
Frequency response: 1Hz - 99.99kHz
Input impedance: > 100k ohms (electronically balanced).
Input level: -40dBv to +24dBv ref: (0.775V)
Return to top of page.

The dB Meter:
The dB meter is a wideband average responding AC voltmeter. The circuit output is converted to dB for display. Direct reading dB greatly simplifies alignment procedures.
Meter Range:.. -50dBv to +24dBv ref: (0.775V)
.. TS1RMX only: -70dBv to +24dBv ref: (0.775V)
Accuracy: ±0.1dB from 20Hz - 20kHz @ 0dBv
..................±1.5dB from 20Hz - 20kHz @ 50dBv
Adjustable zero reference: -10dBv to +8dBv (rear panel adjustment)
Return to top of page.

TS2 only - Impedance Meter:
The impedance meter measures complex impedance in ohms. It allows the user to set up and validate studio equipment, measure components, develope equipment, test loudspeakers and enclosures and to measure and validate distributed loudspeaker systems.
Range: 0 - 999 ohms with 0.1 ohm resolution (standard)
............ 0 - 9999 ohms with 1 ohm resolution above 999 ohms (optional 10k version)
Accuracy: ±5%
Return to top of page.

TS1RMX features:
Inputs: Electronically balanced XLRs mounted on both front and rear panels. Isolated from chassis ground and sharing common ground with the output connectors.
Input Impedance: TS1RMX 100k ohms
Input Selector: Select between monitoring the Internal Oscillator at the Output Connector or an External Signal at the Input Connector.
Outputs: Electronically balanced XLRs mounted on both front and rear panels. Isolated from chassis ground and sharing common ground with the input connectors. The front and rear outputs are driven independantly.
Front/Rear Selector: Select between monitoring the front or rear panel connectors.
Return to top of page.

Battery Pack Option:
A sealed, maintenance free, Gel-type rechargeable battery mounted in a metal enclosure on the rear panel of the test set. (Factory installed only).
Volts: 12Vdc nominal
Capacity @20 Hr rate: 1.2 AH nominal
Discharge current @20 Hr rate: 60mA nominal
Recharging: Battery is automatically recharged whenever the unit is plugged into AC power and the AC power switch is on.
Size (W x H x D); Weight: 4" x 2" x 2"; 1.4 lbs.
