Sound Lab Extras Software for Windows

TEF - The measurement platform

The versatility of the TEF hardware platform has been enhanced to provide even greater capabilities for acoustic measurements. Sound Lab® Extras software was designed specifically to meet testing needs in electrical, acoustical and transducer applications. A powerful addition to your TEF tool kit, SLX contains many frequently requested measurements.



SLX - A sound reason to choose TEF

Besides the traditional Time Response (ETC) and Frequency response (TDS) tests, SLX performs the following:

• Harmonic Tracking
• Impedance (adapter cable included)
• FFT (amplitude versus frequency)
• Harmonic Distortion (specified harmonics)
• Total Harmonic Distortion
• Total Harmonic Distortion plus Noise

Now you can easily measure impedance, locate "rubs and buzzes" and track specific harmonics in loudspeaker measurements. In addition, SLX has the ability to display results with percent octave smoothing of data and can print overlaid files of a single test type. You can turn the TEF into a noise generator and choose pink noise, white noise or a pure sine wave tone. Designed to be used with a PC compatible computer, SLX software supports color printing on any installed printer.



SLX - precision performance in acoustic measurements

SLX is a module that works with the TEF acoustical analyzer to create a complete and flexible sound measurement system.

To speak with the TEF sales department, call 203-938-2588.

Tests performed Energy Time Curves Select frequency range and sweep time Number of data sample points (512, 1024, 2048, 4096, 8192) Measurement windows (Blackman, Hamming, Hanning, Kaiser, Rectangular) Select scaling parameters as fine as one dB per division or auto scale Data cursor Frequency and Phase Response Curves Select frequency range, sweep time, frequency resolution, sweep rate and bandwidth Number of data sample points (512, 1024, 2048, 4096, 8192) Select scaling parameters as fine as one dB per division or auto scale Display percentage octave data smoothing Log or linear frequency scale Data cursor, sensitivity cursor Harmonic Tracking Same features as Frequency and Phase Response Curves User can select harmonic to be tracked (0.1-20) Impedance Same features as Frequency and Phase Response Curves Impedance adapter cable included FFT Generates single frequency sine wave test tone Harmonic Distortion Measure Harmonic Distortion on 1/3 octave centers User can select any combination of harmonics (2-20) to be included in the percentage distortion displayed User can select start tone and number of 1/3 octave tones to be generated Results displayed in bar graph format Log or linear frequency scale Data cursor Total Harmonic Distortion Measure Total Harmonic Distortion on 1/3 octave centers User can select start tone and number of 1/3 octave tones to be generated Results displayed in bar graph format Log or linear frequency scale Data cursor Total Harmonic Distortion Plus Noise Measure Total Harmonic Distortion plus Noise on 1/3 octave centers User can select start tone and number of 1/3 octave tones to be generated Results displayed in bar graph format Log or linear frequency scale Data cursor

Smoothing of data Percentage octave   Frequency curve splicing Any Frequency/Magnitude data may be spliced together to provide greater resolution at both the high and low ends of the curve.   Overlays Any Frequency/Magnitude data may be overlayed; can print overlays   Sound generator Function keys enable the TEF to output pink noise, white noise, and pure sine wave tones   Difference mode Available for energy time curves, frequency and phase response measurements   Sensitivity cursor Shows the average level in a range of data in a frequency response     TEF requirements Works with TEF25, TEF20, TEF20 HI and TEF20 SHIP   Computer system requirements Operating System - Windows 95, 98, Me, NT, 2000 or XP   Microprocessor - Pentium class   RAM - 16 megabytes of available memory   Monitor - VGA (640x480) minimum   Hard disk - 10 megabytes for installation   FOR TEF20's -   Interface, parallel - One bidirectional 8-bit parallel port. Must be assigned as LPT1 or LPT2   Interface, host - One 8-bit ISA expansion (TEF20 HI) slot for (HI-PC card)     Browser - Netscape or IE4.0 for on-line manual               TEF, and TEF System 20 are registered trademarks of Gold Line, West Redding, Connecticut.           ®The trademark SOUND LAB is licensed under United States Trademark Registration No. 1,424,678 and 1,732,027.

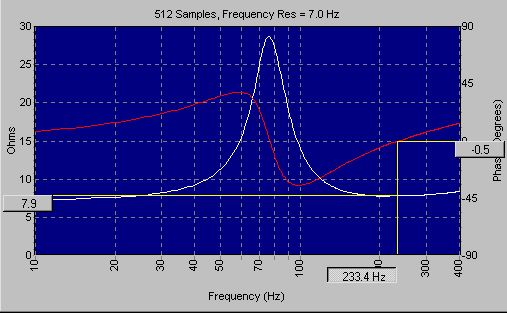

QUICKLY MEASURE THE COMPLEX IMPEDANCE OF A LOUDSPEAKER.

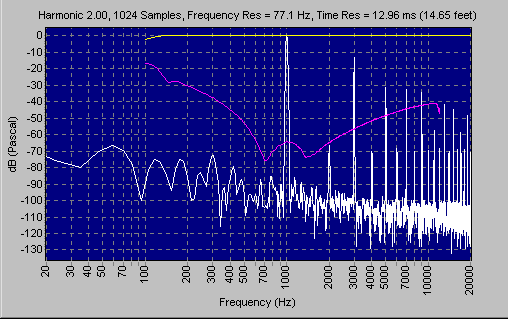

SHOW ANY HARMONIC FROM THE 1/10TH TO THE 20TH MEASURED BY FFT OR HTR.

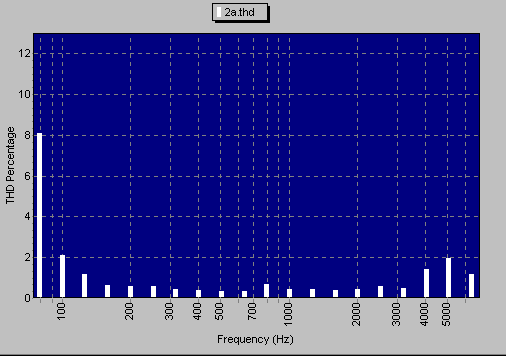

THREE TYPES OF HARMONIC DISTORTION TESTS GIVE YOU MAXIMUM MEASUREMENT CAPABILITY.
